BS 6724 AWA
Description
Application
Direct burial in free-draining soil conditions for fixed indoor and outdoor installations. Low levels of emission of smoke and corrosive gasses in case of fire.

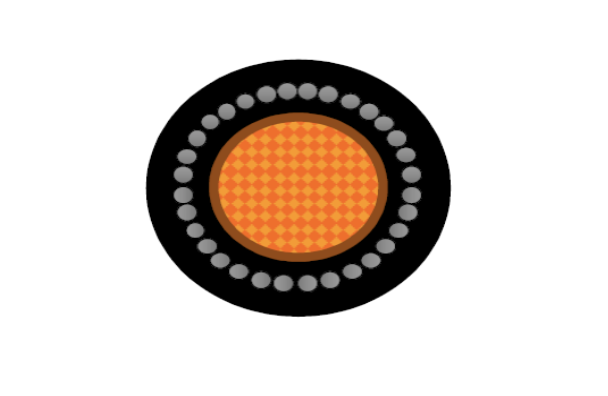

Construction
Cu/XLPE/LSZH/AWA/LSZH
1- Conductor: Copper
2-Insulation: XLPE
3- Filler: LSZH
4-Armour: Aluminium wire armour
5- Outer sheath: LSZH
Technical Data
Min. bending radius 12 x D (D: Overall diameter)
Max. operating temperature 90ºC
Short circuit temperature: 250ºC
Details
| Construction | Cu/XLPE/LSZH/SWA/LSZH |
|---|---|
| Standards | BS 6724, TS IEC 60502-1 |
| UK Code | 694-B |
0.6/1 kV halogen free, flame retardant, aluminium armoured, power cables
|
-20/+90 °C |
Halogen Free
IEC 60754-1 |
Low Toxicity
IEC 60754-1 |
Low Corrosivity
IEC 60754-2 |
 Low Smoke Emission
IEC 61034 |
 Flame Retardant
IEC 60332-1-2 |
Flame Retardant
IEC 60332-3-24 |
